- Fast Charging: 100-120 VAC input, 72.5 Volt 3 Amp maximum output, charges 60 Volt 5 string GLE/ AGM / Lead batteries, fits 60v 20ah 60v22ah Sealed Lead Acid Replacement Battery
- Product material: 60 volt charger shell is made of ABS material, drop resistant, high temperature resistant, the charger has a built-in fan for faster heat dissipation and safety.
- Safe and Secure：Automatic shutdown when fully charging. multilevel protections guard against overcharge, over-voltage, overheat, over-time charging and short circuit

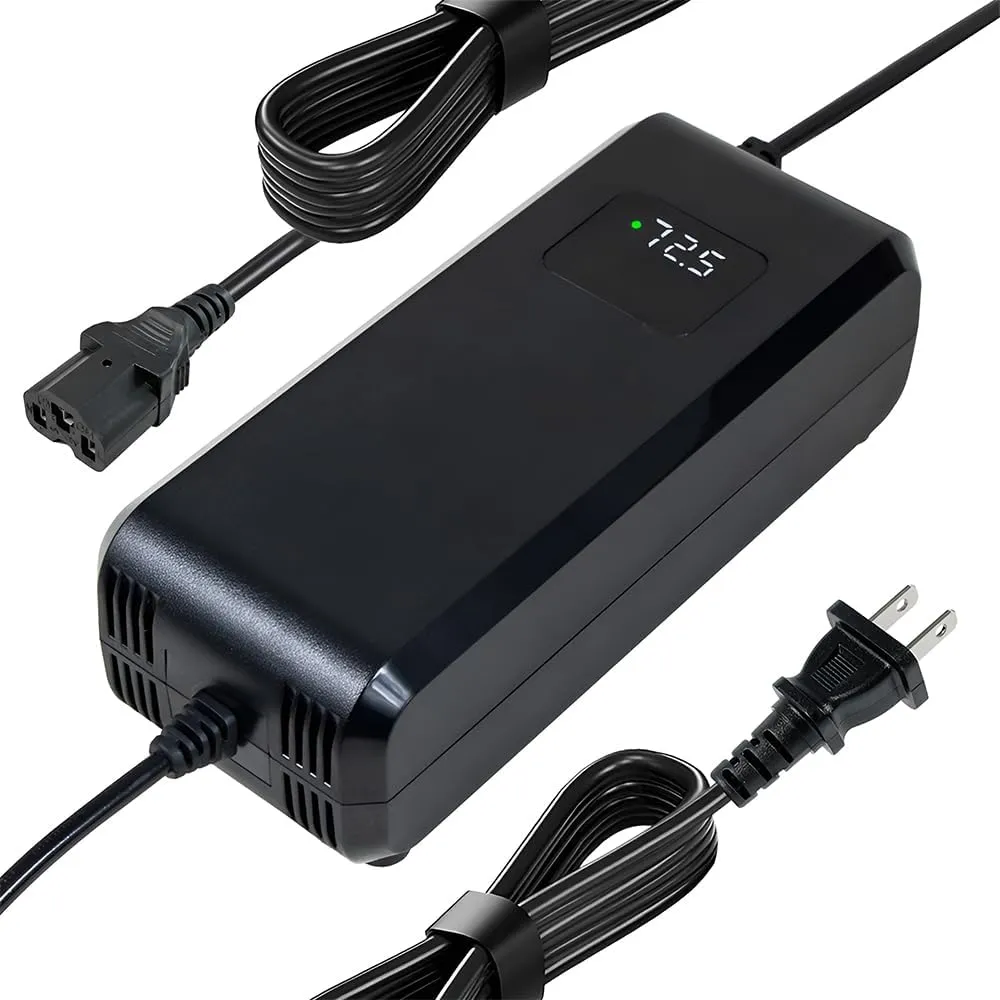

- DISPLAY SHOWS - The red and green lights on the display flash alternately when charging to show the charging voltage of the battery, when the battery reaches 100, the display voltage value is 54.6v, this is an automatic battery charger, it will turn off automatically when charging is complete to prevent overcharging
- Compatibility: Charge 60v 5S lead-acid battery packs, can replace different brands of 60v 20ah to 60v 40ah capacity batteries
60V Battery Charger Parameters:
Input: AC 100-120V 50/60Hz
Output: 72.5V 3Amp (max)
Output Connector Diameter Universal T Port Plug
Connector Electrode Polarity: (N L-) (Please make sure the output electrode of the original charger is the same as this charger)
Applicable Battery Parameters ： 60v GLE/ AGM /Lead battery （5s*12v=60v）
Charging mode: CC-CV-Float Charge
Cautions
1. After getting the charger, please check the box contains an ac power charger and a manual.
2. Please connect it to the AC power supply, check whether the LED indicator light on the charger panel is bright green (bright green means that the charger is intact), after connecting the battery, the charger will turn to charging state (red light and green light flashing alternately), when the battery is full, the indicator light will turn into a green light.
3. There is a display on the panel of the charger, you can clearly see the voltage change of the battery in the charging process, when the battery is full, the display shows 72.5v
Special Tip:
If the charger does not charge properly, try to unplug the connector again, if the contact is good, the charger will work better. If the battery connector has been used for a long time and is worn out, this can also cause a situation caused by poor contact between the charger and the connector
