- E-Bike Light Sets Applicable voltage 36V48V52V60V
- Bicycle lithium conversion parts QD168 light set five star headlight horn tail light turn signal DK336 switch
- Bicycle lithium-ion conversion accessories ebike ebike light kit Headlight Tail light Horn DK336 3 in 1 kit

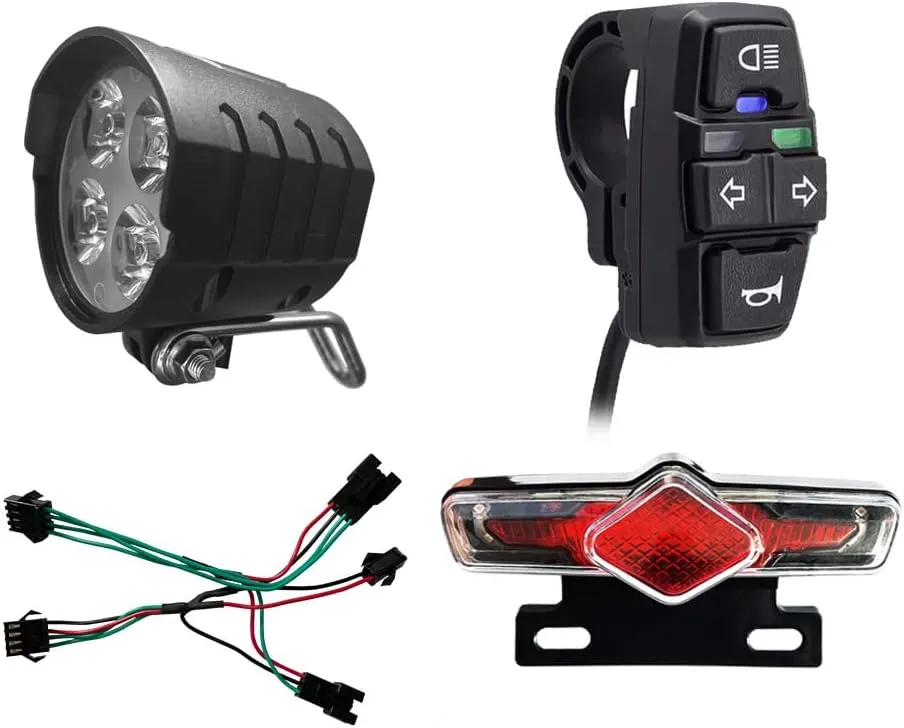

- QD168 headlight C-50C tail light DK336 switch connection cable
E-Bicycle tail light
Power: 0.5W
Type: tail light
Function: rear light, brake light,turn signal
Model: C-05C
Size:147*44*42mm
Light brightness: 15 LM
Applicable voltage: 36V-60V
Outlet:four-core wire
Waterproof grade: IPX4
Rear light current:48//13mA,36V/10mA Material:ABS
Installation location: the rear of the frame
E-Bike Scooter Light Switch
Wire pulling force:>130N
Model:DK336
Core:8 Pins
Name:Light/Horn/Turn Switch
Current: 0.5A/12V DC
Voltage:12V-72V
Waterproof:IPX4
Cable length:1500mm/59.06in
Red button: Bicycle light
Weight:38.4g
Green button: Bicycle Horn ●Installation diameter: p22.2mm
Operating temperature:-20°C~60°C
Material: PP TPR
Function:Control horn and light ON/OF
E-bike Headlight
Type: Ebike Headlight
Plug:3pin SM Plug
Model:QD168
Cable Length:164cm(64.56in)
Size: 52*59*55mm
Light brightness:15 LM
Applicable voltage: 36V-60V
Weight:100g
Color:Black (As Pictures Show)
Power:12W
Installation location: the front of the frame
Material: Plastic
