- MATERIAL: Made of high-quality metal and plastic, easy to install, compatible with lithium-ion battery packs, and can change the time to adapt to different brushless motors, with a long service life.
- PERFORMANCE: With a smooth surface, wear-resistant, drop resistant, sturdy and durable, compact and exquisite appearance, it is a combination kit that is complete and can meet your various needs.
- COMPATIBILITY: The electronic stability control system can calibrate the throttle range to make it compatible with different transmitters. The micro servo weighs only 9 grams/0.3 ounces, with a torque of 1.5 kilograms/centimeter. It has stable and professional performance, small size, low noise, and reliable use.
- INSTALLATION: The installation is simple and does not require complex operations, saving time and effort.
- ADAPTATION: Suitable for RC gliders, quadcopters, helicopters, Copter multi rotor aircraft, and also supports multiple programming methods: launch rods, LED program cards. Suitable for homes or airfields
Item Type: RC Aircraft Accessory
Material: Metal Plastic
ESC Parameters:
Continuous Current: 40A
Peak Current: 55A (10 Seconds)
Input Power: 2-4S
Bec Output: 5V at 3A (linear regulator mode-linear mode)
Plug: XT60
Maximum speed: 2-pole motor 210,000rpm, 6-pole motor 7000rpm, 12-pole motor 35,000rpm
SG90 Servo parameters:
Weight: Approx. 9g/0.3oz
No-Load Speed: 0.12 Seconds / 60 Degrees (4.8 V)
Locked-Rotor Torque: 1.5-1.7kg/Cm (4.8V-6V)
Working Temperature: -30℃ - 60℃
Dead Zone Setting: 5 Microseconds
Working Voltage: 4.8V-6V
Motor Parameters:
KV: 2200
Ri (MΩ): 0.033
Motor Size: Approx. 27.5 x 38mm/1.1 x 1.5in
Shaft Diameter: Approx. 3.17mm/0.12in
Quantity: 1 Set

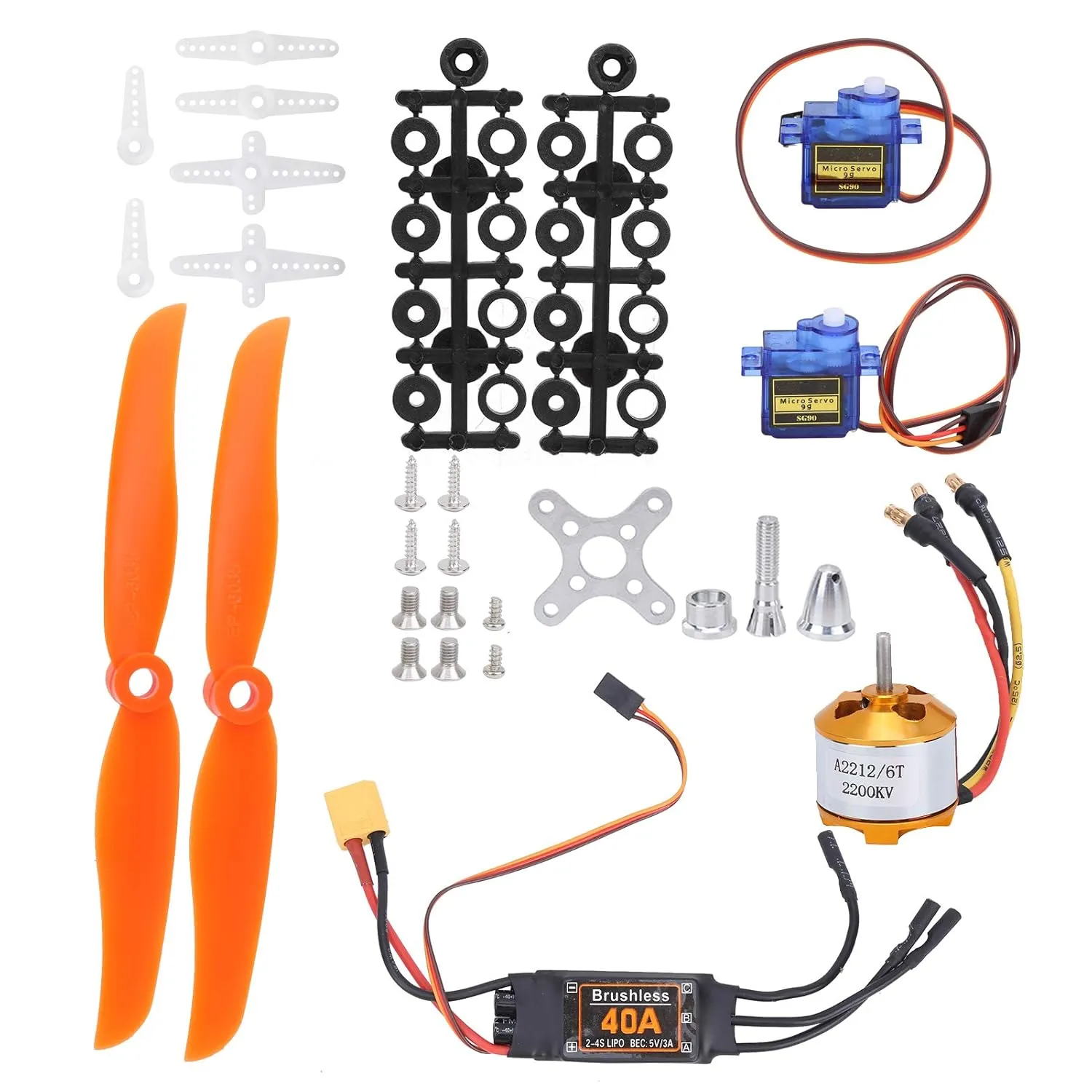

Package List：
1 x Motor
2 x Paddle
2 x Servo
1 x ESC
1 x Motor Seat
1 x Bullet
6 x Servo Arm
1 x Cable Tie
10 x Screw
2 Rows of Paddle Washer
- Package Dimensions : 6.3 x 3.54 x 1.97 inches; 3.75 Pounds
- Date First Available : April 26, 2024
- Manufacturer : Chazcool
- Country of Origin : China
