- The amplifier design is Class D, which uses digital switching power supplies. The result is much higher efficiency (less heat generated) than Class AB.
- The aluminum heat sink increases the amplifier's heat dissipation efficiency, increasing the life of the amplifier.
- The bass boost circuit for the subwoofer section is centered at 40 Hz; boost is variable from 0 to 18 dB.
- The XR901-5 includes a wired remote control with a 20-foot cable that allows you to adjust the volume of the subwoofer from the cabin of the vehicle.
- The XR901-5 is compatible with Hi-Res Audio sources which are capable of reproducing frequencies up to 40kHz.

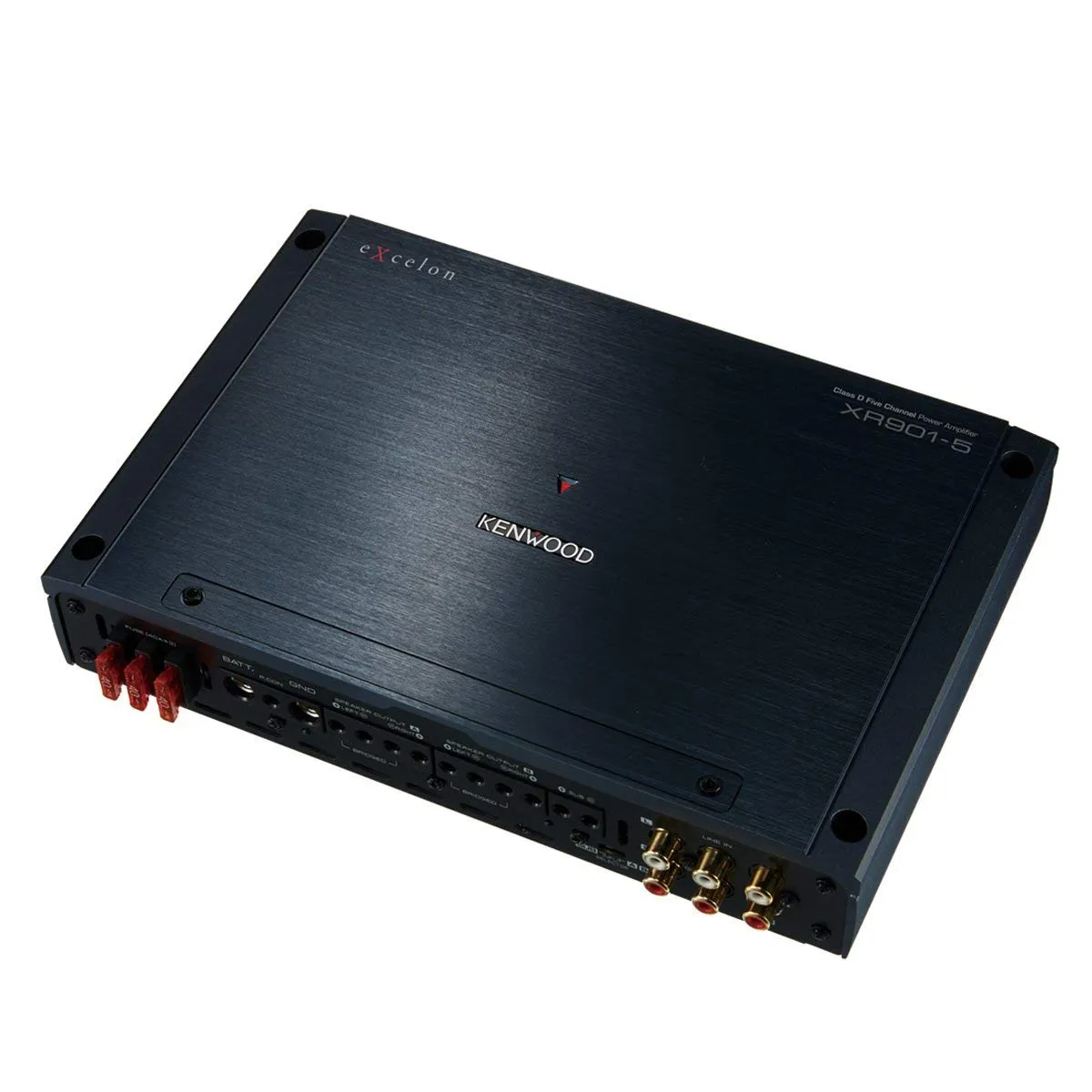

Refurbished Kenwood Excelon XR901-5 Reference Series 5-channel Car Amplifier Reference Series 5-channel car amplifier — 60 watts RMS x 4 at 4 ohms 600 watts RMS x 1 at 2 ohms. Kenwood's Excelon Reference Series XR901-5 amp is small but mighty and can power your entire audio system and takes up less than 2" in height. But this compact 5-channel workhorse will send 60 watts RMS to each of your front and rear speakers, along with up to 600 watts RMS to your sub. You could also use the XR901-5 in 3-channel mode to drive a pair of high-performance speakers or components with 150 watts RMS each, while still sending 600 watts RMS to a sub Product highlights: 5-channel amplifier 60 watts RMS x 4 400 watts RMS x 1 at 4 ohms 75 watts RMS x 4 600 watts RMS x 1 at 2 ohms 150 watts RMS x 2 bridged at 4 ohms 600 watts RMS at 2 ohms CTA-2006 compliant Class-D amp design — frequency response: 20-40,000 Hz variable low- and high-pass filters on front and rear channels (50-200 Hz, 12 dB/octave) variable low-pass filter on subwoofer channel (50-200 Hz, 24 dB/octave) More Features: wired remote volume control for sub channel cooling fan preamp inputs only fuse rating: 40A x 3 wiring and hardware not included with amplifier 4-gauge power and ground leads recommended 10-1/4"W x 2"H x 7-3/16"D
- Is Discontinued By Manufacturer : No
- Product Dimensions : 14 x 11 x 4 inches; 0.01 ounces
- Date First Available : October 12, 2018
- Manufacturer : Kenwood
