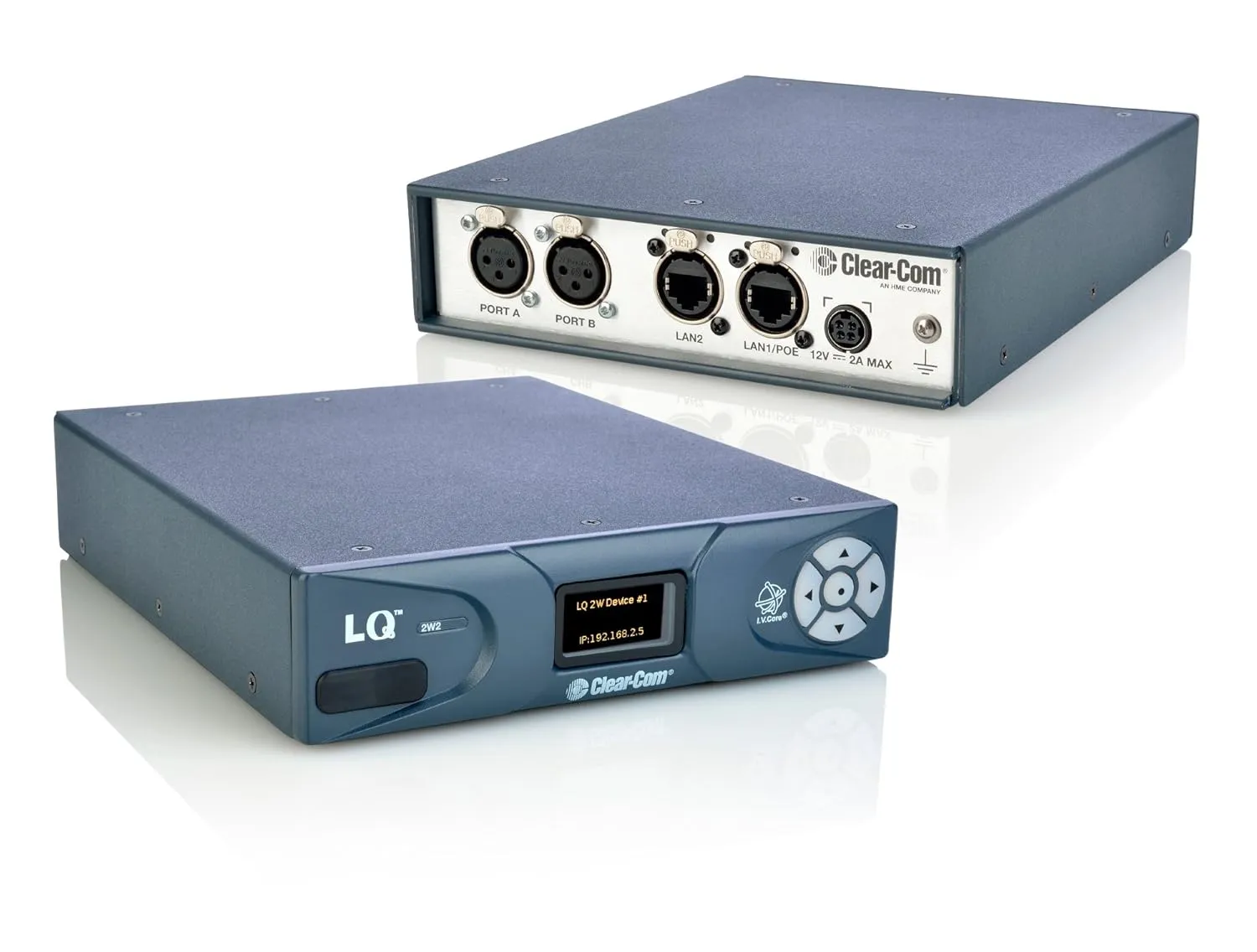

LQ IP interfaces are compact boxes that enable connection of 2-wire partyline and 4-wire audio devices over LAN, WAN or Internet IP infrastructures. LQ is available in 2-wire (LQ-2W2) or 4-wire (LQ-4W2) options. The LQ-2W2 is both Clear-Com and RTS compatible. Two standalone partyline intercom circuits can easily be constructed by connecting two LQ-2W2 interfaces. The LQ-4W2 can interconnect with devices, such as analog ports of any matrix intercom system, analog telephone circuits, two-way radio gate-ways and audio consoles. A maximum of six LQ IP devices can be linked together in any 2- or 4-wire combination. The LQ-2W2 enables the connection of 2-wire partyline audio devices over LAN, WAN or Internet IP infrastructures. Two standalone partyline intercom circuits can easily be constructed by connecting two LQ-2W2 interfaces. The LQ-2W2 is both Clear-Com and RTS compatible. Audio Assignments: At least two ports must be associated to a channel. When the two or more ports are added to a channel, it becomes a Virtual Partyline (VPL). Connectors: Both LQ devices have two Neutrik etherCON series lockable RJ45 chassis connectors for network connectivity. The LQ-2W2 has two 3-pin XLR-F audio port connectors for partyline audio. The LQ-4W2 has two additional Neutrik etherCON audio port connectors for analog 4-wire audio. Power: The LQ-2W2 can power the partyline, allowing the user to connect a beltpack without the need of a power supply to locally power the line. A total of 5 beltpacks can be locally powered or one beltpack can be powered using PoE.

• Is Discontinued By Manufacturer ‏ : ‎ No
• Item Weight ‏ : ‎ 0.01 ounces
• Date First Available ‏ : ‎ June 18, 2015
• Manufacturer ‏ : ‎ Clear-Com
