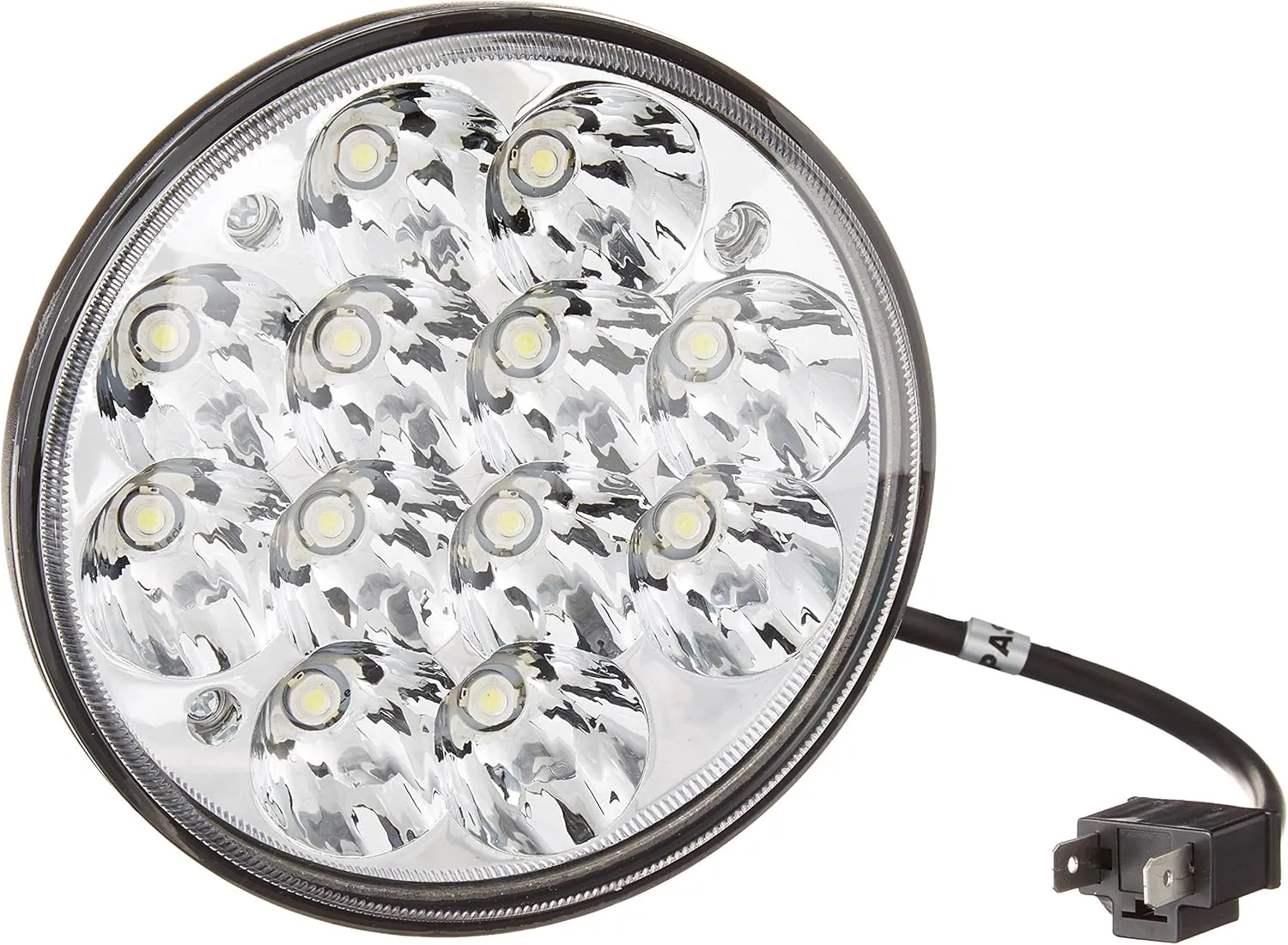

Handxen LED PAR46 5.75'' Unity Spotlight is for old original police spotlight replacement.

Replaces bulb model: PAR46, 4522, 4570, 4581,4580, H5001, H5006, H4001, 4000, 4040, 5506, 5009, H5006LL, H5009, H5001XV.

Specification:

LED Chip: 36W (12xEpistar 3W high intensity LED)

LED illuminating rated power：23±0.5W（The utilization of the LED chips is 45%, avoid Lumens depreciation)

Beam pattern: 30° Narrow beam

Input voltage: 9-60V DC (fits 12V, 24V vehicles)

Working lifespan: over 30,000 hours

Working temperature: -40℉~185℉（-40℃~85℃）

LED color temperature: Xenon white 6000K-6500K

Lens Material: PMMA

Waterproof Rate: IP67

Waterproof, dustproof, quakeproof and anti-corrosive. Brighter, further & safer beam More powerful & brilliant lighting effects! 2,260 raw lumens, Spot beam pattern makes them shine farther enough, so that the sides of the road are easier to see on unlit winding mountain roads.

Fits 1998-2011 Crown Victoria Stock Unity Spotlight. This bulb can be a part for Crown Victoria, Trim: Base Sedan4-Door, LX Sedan 4-Door, Police Interceptor Sedan 4-Door; Standard light bulb replacement used in police applications. It works as a spotlight on driver side post of 2007-2014 Tahoe.

Extra Applications: Tractors light, Aircraft Landing, Aircraft Taxi, 6" Halogen off road driving Light Replacement, Marine Spot Lights, Vehicle Headlights, like this PAR46 bulb also fit the BARON-TRAVEL AIR-BAONAZA inboard wing pods.

Installation guide for reference:

1. Cut the original 2-pin spade;

2. Add a new spade connector to the black ground wire.;

3. snip the terminal lug wire off the halogen bulb and splice to the red positive wire;

4. plug in the connections and test.
